DMD POWER BOX

If you bought the DMD POWER BOX this page is for you.
We will keep this page updated as much as possible to provide all the information you need to assemble, operate and maintain your device.

If you want to contact us regarding adding support for more apps or about improving the functionality on a specific app use the forms in the bottom.

Certification:

CE, REACH, ROHS, WEE

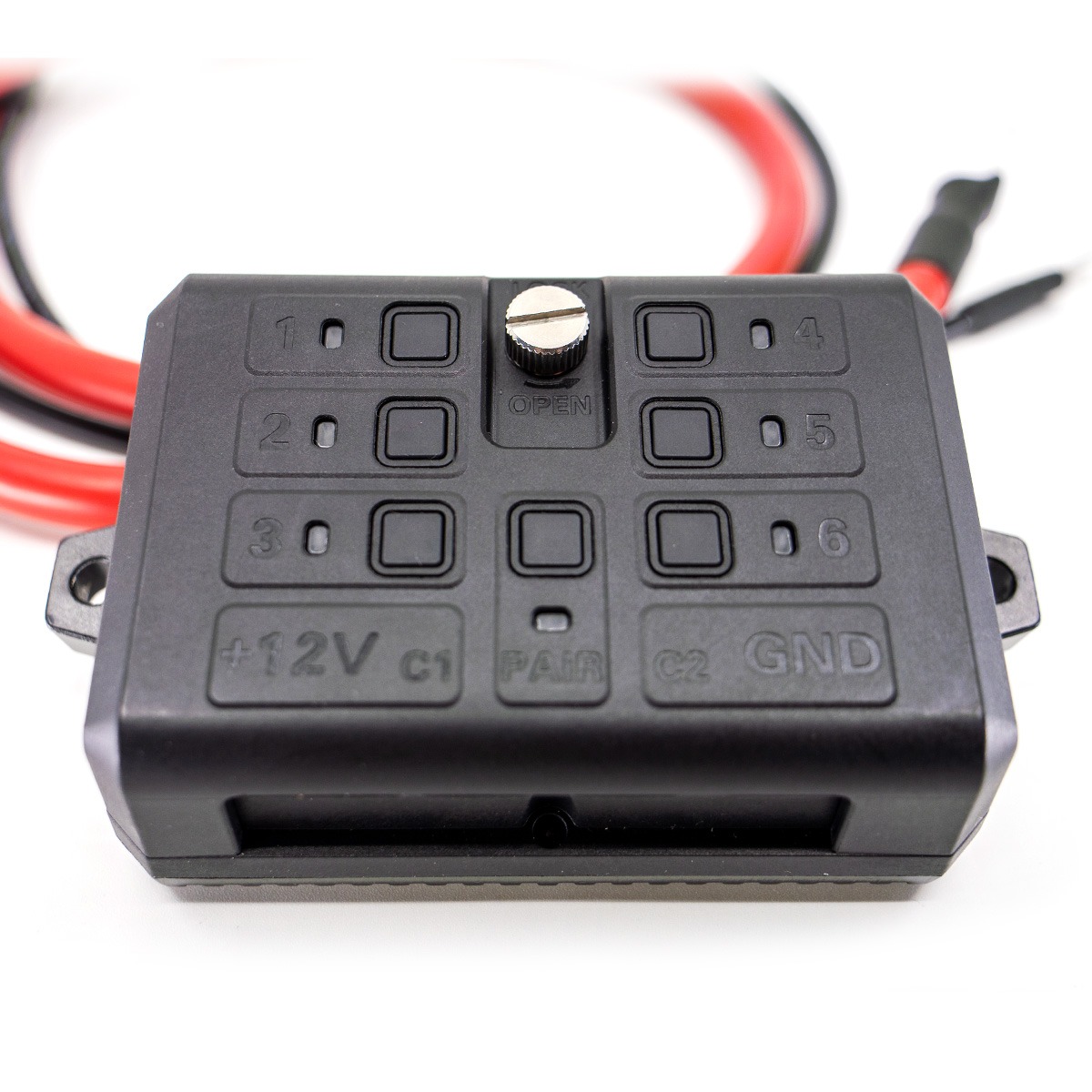

Installing

  1. Find a good ventilated spot to install the Power Box, probably better and easier to place it close to the vehicle battery!

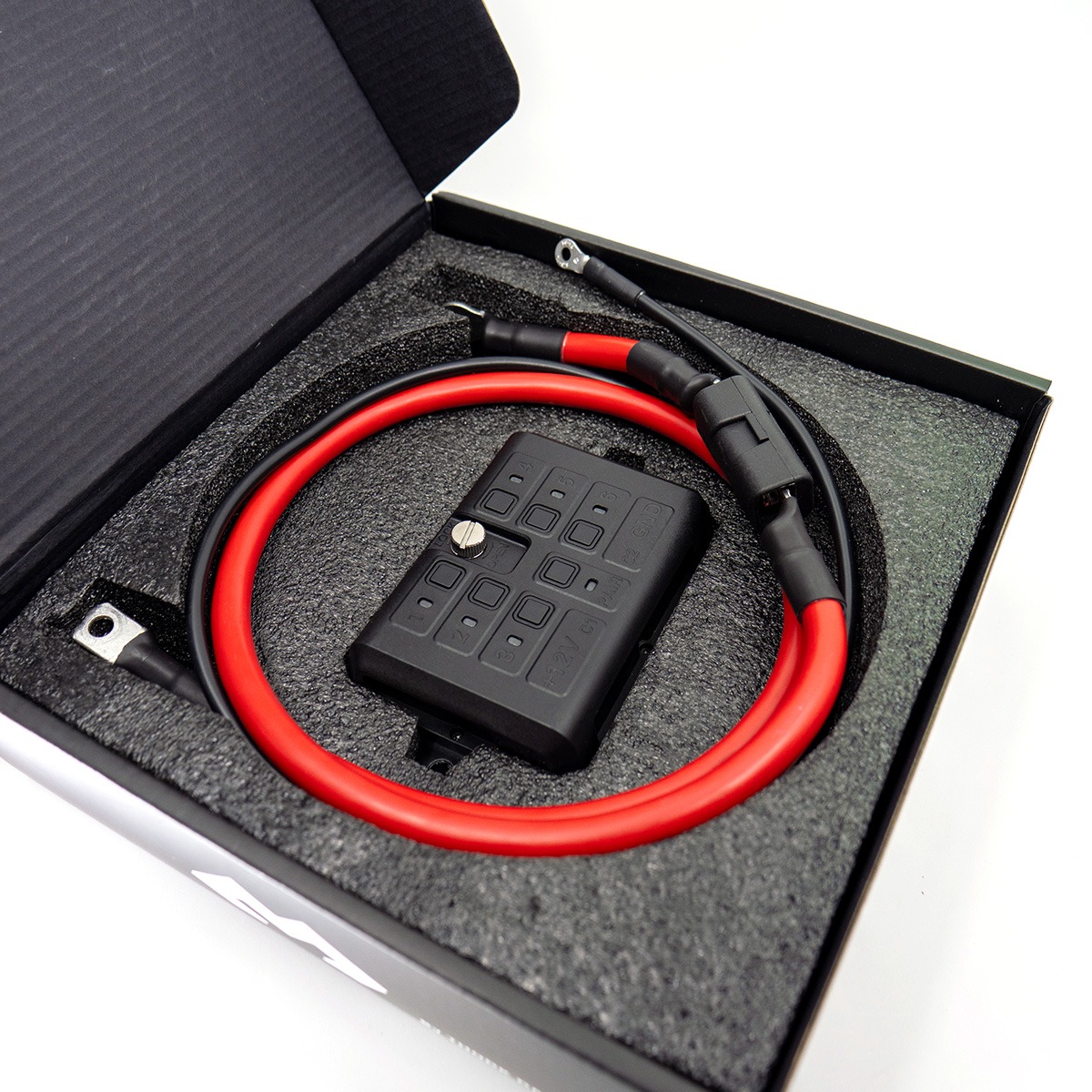

  2. Connect Power Box 12V input to vehicle 12V (positive) – you can use the included red cable
  3. Connect Power Box ground (GND) to battery ground – you can use the included black cable
  4. Connect a cable with 12V from your ignition (post-ignition) to the Power Box C1 input

Ignition Detection:

The Power Box is intended to be connected directly to the vehicle battery, for this reason we have a post-ignition detection that allows the power box to turn-off and on when you turn off your ignition.

The C1 input is the input that is expected to receive 12V post-ignition, when it receives power the Power Box will turn on and load previous configuration, when you cut the ignition power (C1 no longer gets power) the power box will turn off and shutdown all power channels after some seconds.

Notice: You can temporarily disable idle detection in the app, this allows you to keep your devices running off the battery of your vehicle even when you turn off ignition.

1
2
3

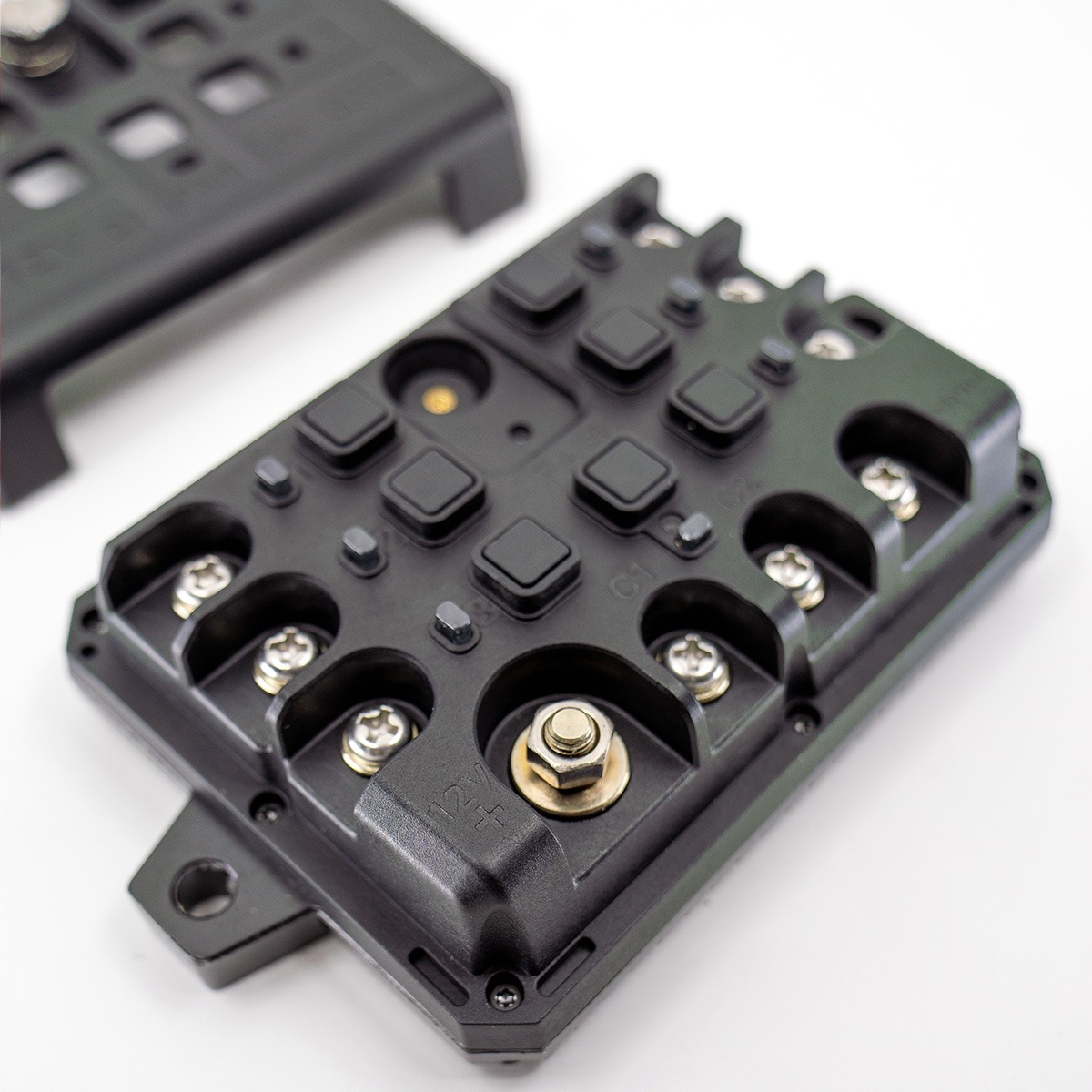

1

12V Input – Directly to battery positive

2

Ground – Directly to battery ground

3

Idle detection – Connect to 12V post ignition

Pairing

  1. Open the Android Bluetooth menu in your device and go to “Pair new device”
  2. Turn on ignition and make sure the Power Box is powered
  3. Press and hold the “Pair” button until it flashes (minimum 4 seconds pressing it)
1
1

Pair Button – Press and hold to make device visible

Control

To start using your Power Box you need to start DMD2 app and then configure it settings:

Go to Global Settings (cog wheel in bottom menu) > Scroll down to “Accessories Settings” > Tap on “Power Box Settings”

The first setting on the list is where you select the device, tap on it and select the device named “DMD-PowerBox”.

After setting up the Power Box you can now add the Power Box widget in the home screen or add individual switches in all views that allow you to add Indicator Widgets.
