DMD-T665
6″ Android phone and holder – Made for motorcycle navigation!
6″ Android phone and holder – Made for motorcycle navigation!
6″ Android phone and holder. Built for motorcycle navigation!
Built for Navigation:
For those who seek a navigation device with the advantages of the Android eco-system!
–
Includes tablet, charging holder and harness with power supply.
IP67, vibration and shock proof, waterproof, with all the motorcycle navigation feature you would want.
–
Highlights:
Its a phone, its a navigation device:
Looking for a smaller device that you can also use just like a regular phone? This is it!
Insert your SIM card and go for your next adventure. With the magnetic charger base its easy to attach and detach from your motorcycle. The magnetic base keeps all your cable connections for power and controller.
The DMD-T665 includes a magnetic base with retaining clips where you can connect power and our DMD controllers cable connection, this way, when you attach the device it will automatically get power and controller data.
The magnetic base also has an optional key lock system!
The DMD-T665 is the perfect system if you need to quickly attach and detach your navigation device so that you can also use it as a regular phone during your adventures.
IP67 Rating – Water resistant (submersible up to 3m) and dust proof
Hot and Cold Tested: IEC 60068-2-14:2009
-20C to 60C certified
Proper charging system, if battery temperature gets high, the battery will be put into idle mode, keeping its level while the system will run directly from power. No power loss, no discharging, no shutdown!
Shock and Crash Tested: IEC 60068-2-27:2008
Pulse waveform: half sine wave; Acceleration: 500m/s2; Pulse time: 6ms;
Test axis: ±X axis, ±Y axis, ±Z axis, a total of 6 directions;
Vibration Tested: IEC 60068-2-64:2008
12V from motorcycle to feed device base and controller
Power Converter and Controller Data Receiver
Sends data from controller to receiver box
Single controller connector
Delivers Power and Controller Data to Base

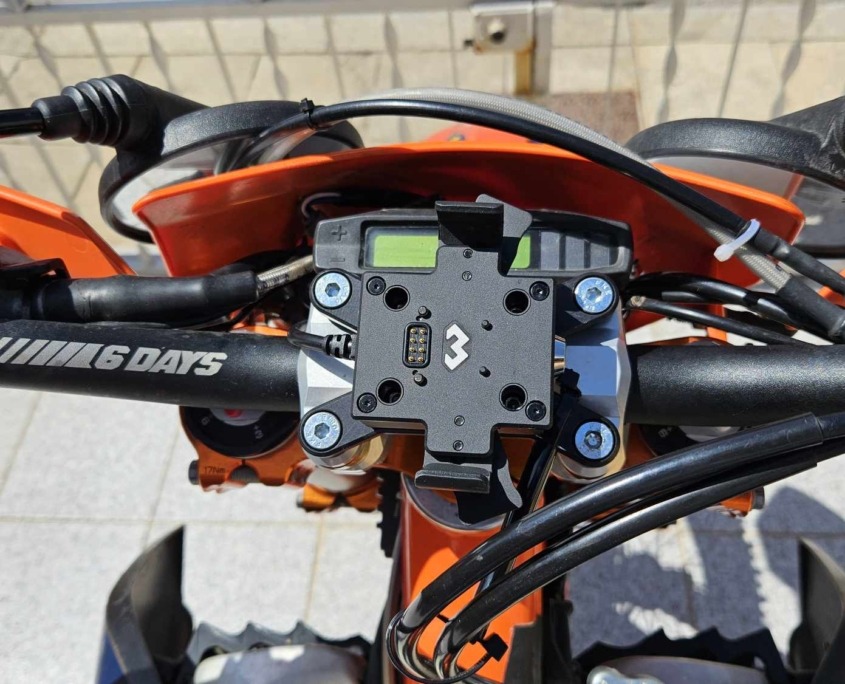

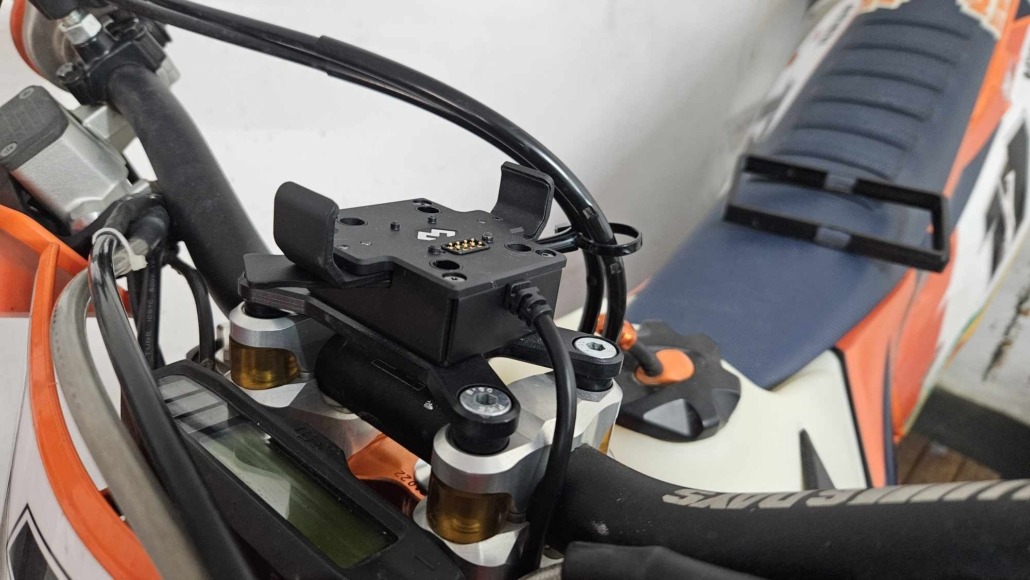

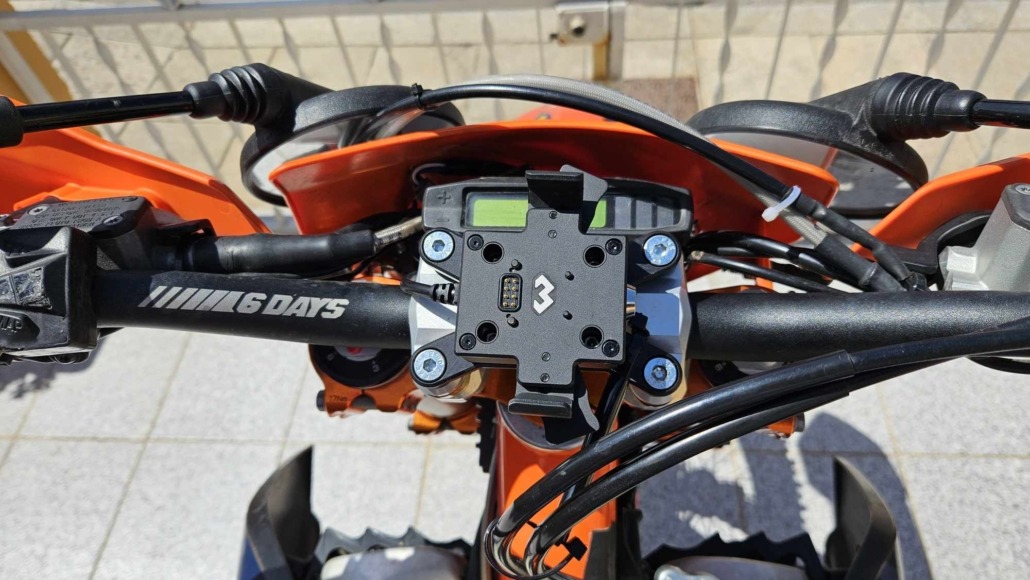

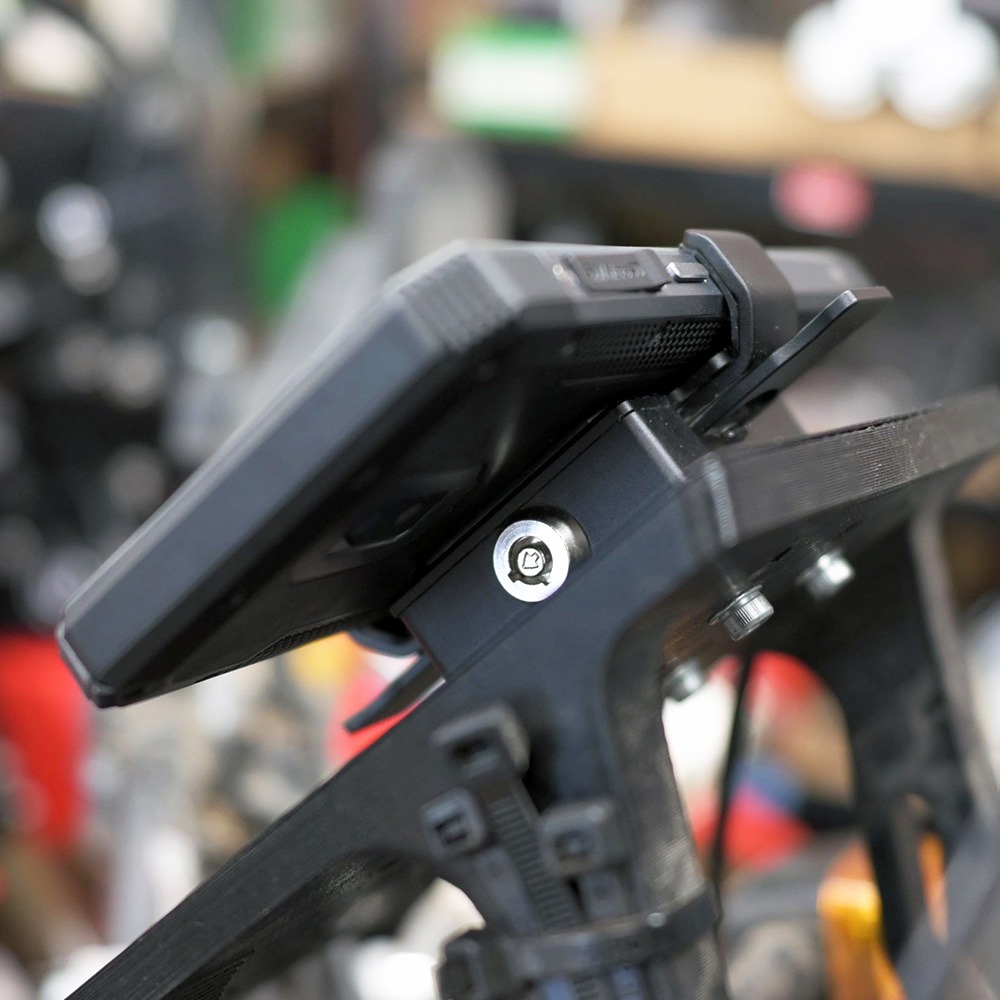

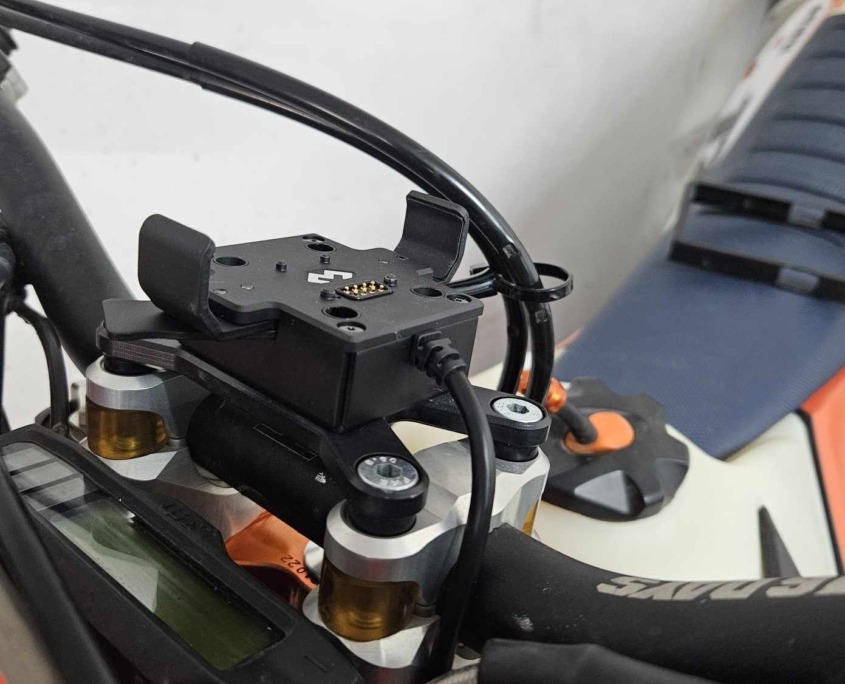

Magnetic Base – with power and controller data
Device attach system with pins for power and controller data
Our Android system is optimised for navigation and includes many useful system functionality tailored for motorcycle navigation.
We are always working to improve the system and all its apps. We release frequent OTA updates with firmware updates and configuration updates.

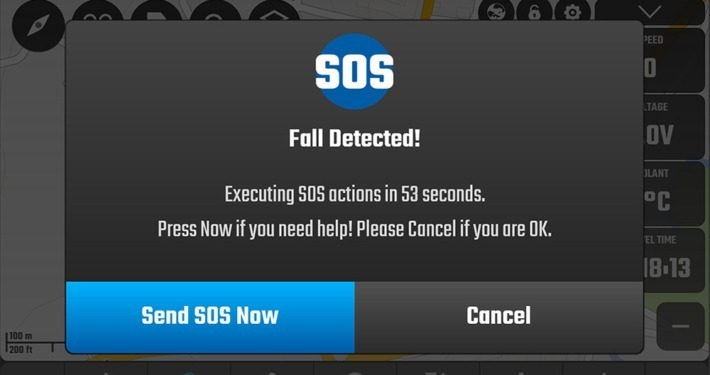

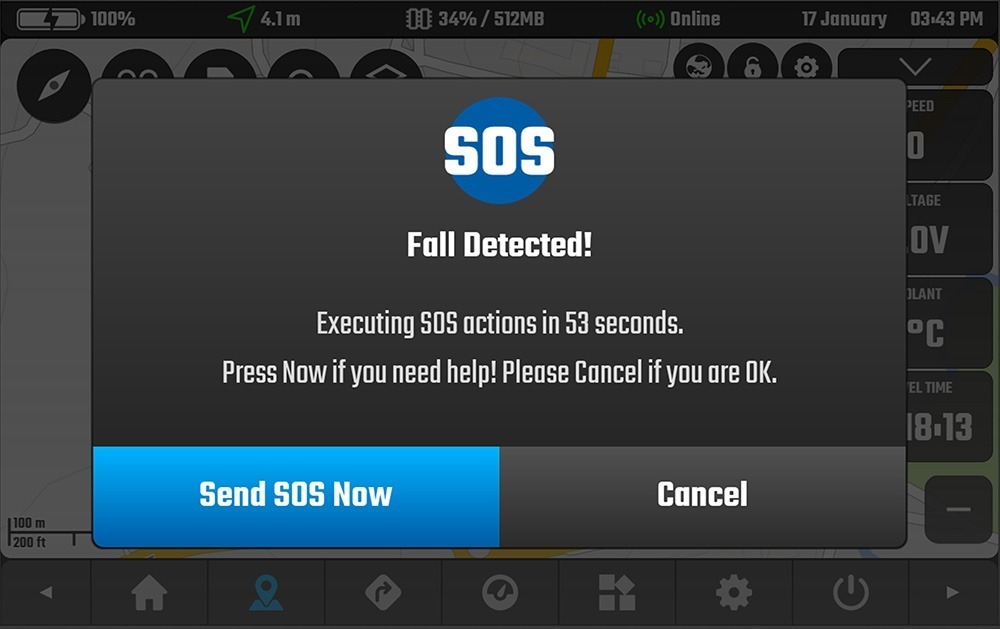

The SOS system will detect falls and trigger a dialog with timer, if not canceled, it will send a user configurable SMS, with your location, that can be sent to up to two phone numbers.

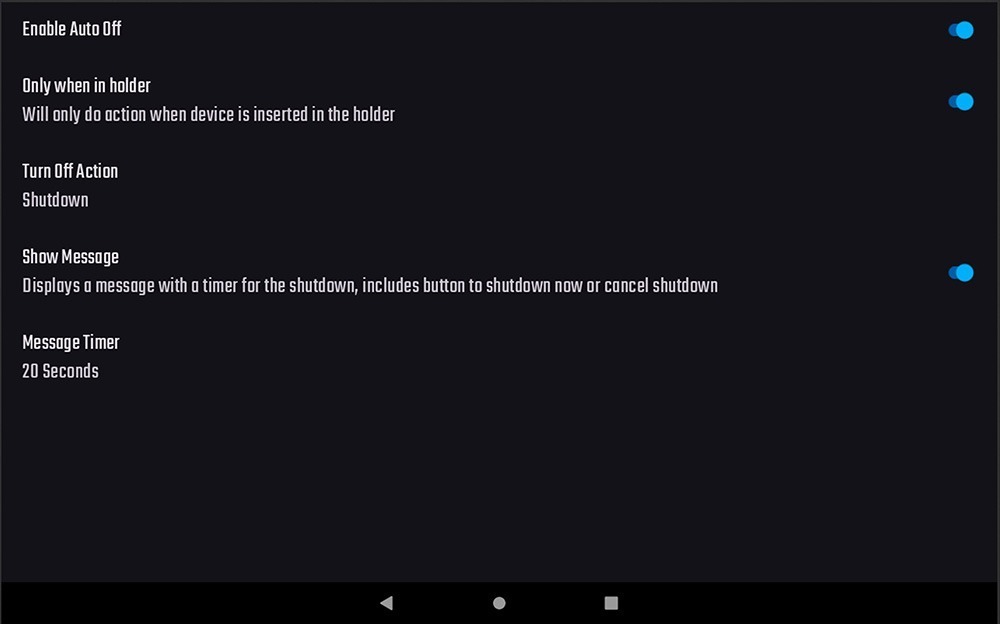

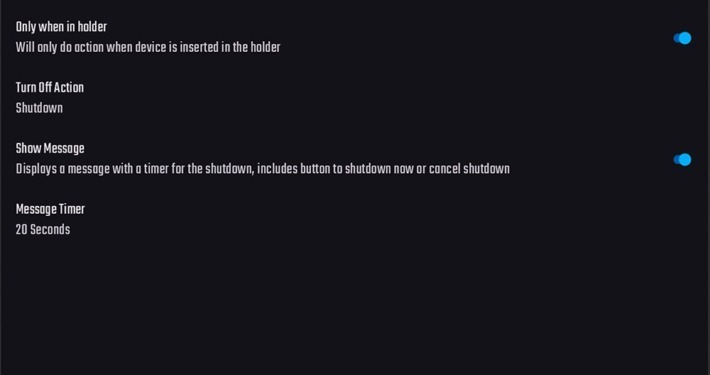

Configure actions for when you turn off your motorcycle ignition, shutdown or turn-off the screen with a countdown dialog where you can cancel the action.

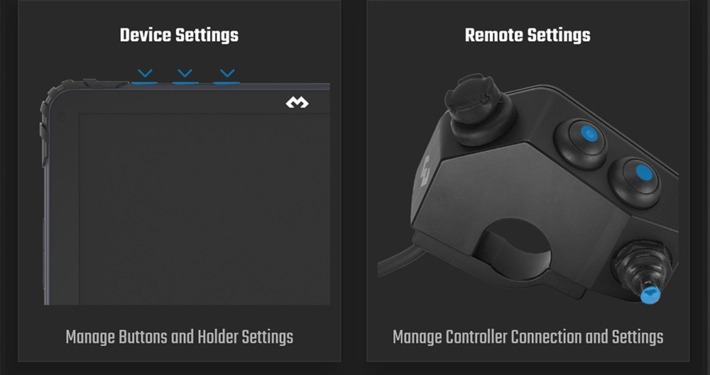

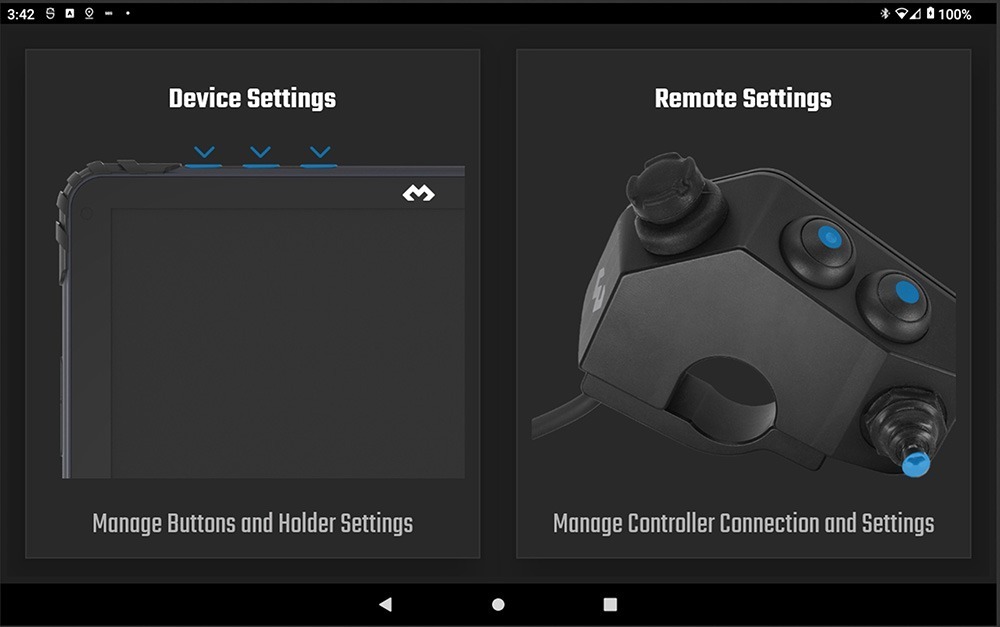

Configure the device extra button with useful actions like SOS, toggle screen touch and open apps. Setup actions for when the device is inserted in the holder.
With only 280g, the DMD-T665 is a device that will navigate you on your next adventure and will easily become a regular phone.
Built tough, water resistant, dust resistant, vibration and shock proof and with the best GPS reception!
