User Manuals For DMD-T** Devices

If you bought a DMD-T865 or DMD-T665 this page is for you.
We will keep this page updated as much as possible to provide all the information you need to assemble, operate and maintain your device.

If you are looking for instructions for other devices please consider checking the device manufacturer page.

Downloads:

File downloads for the devices. In PDF format.
Quick reference manual and specifications.

DMD-T865

Coming soon… we are updating the information.

DMD-T665

Quick Start Manual Download:

Download Manual

Device Specifications:

Download Specifications

Mounting:

The included charging holder needs to be secured to a base with AMPS bolt pattern, screws are provided but you should make sure you have a base with this hole pattern already installed in your motorcycle. For each installation/motorcycle model there are usually plenty of AMPS pattern bases, if you have a navigation tower, chances are it already includes a base like this, if not, you need to search one for your motorcycle model / tower.
Most GPS Mounts will work, you can check some here.

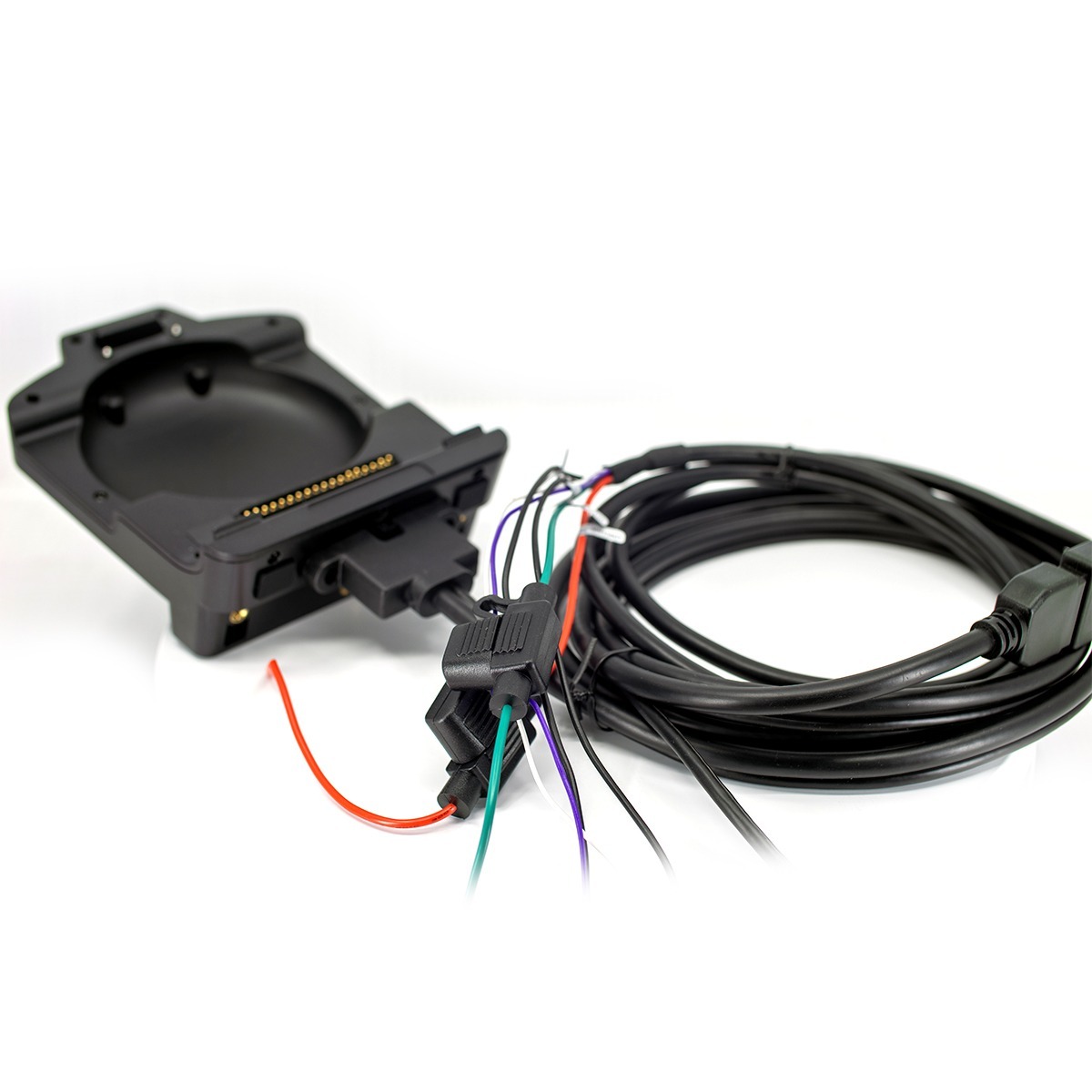

DMD-T865

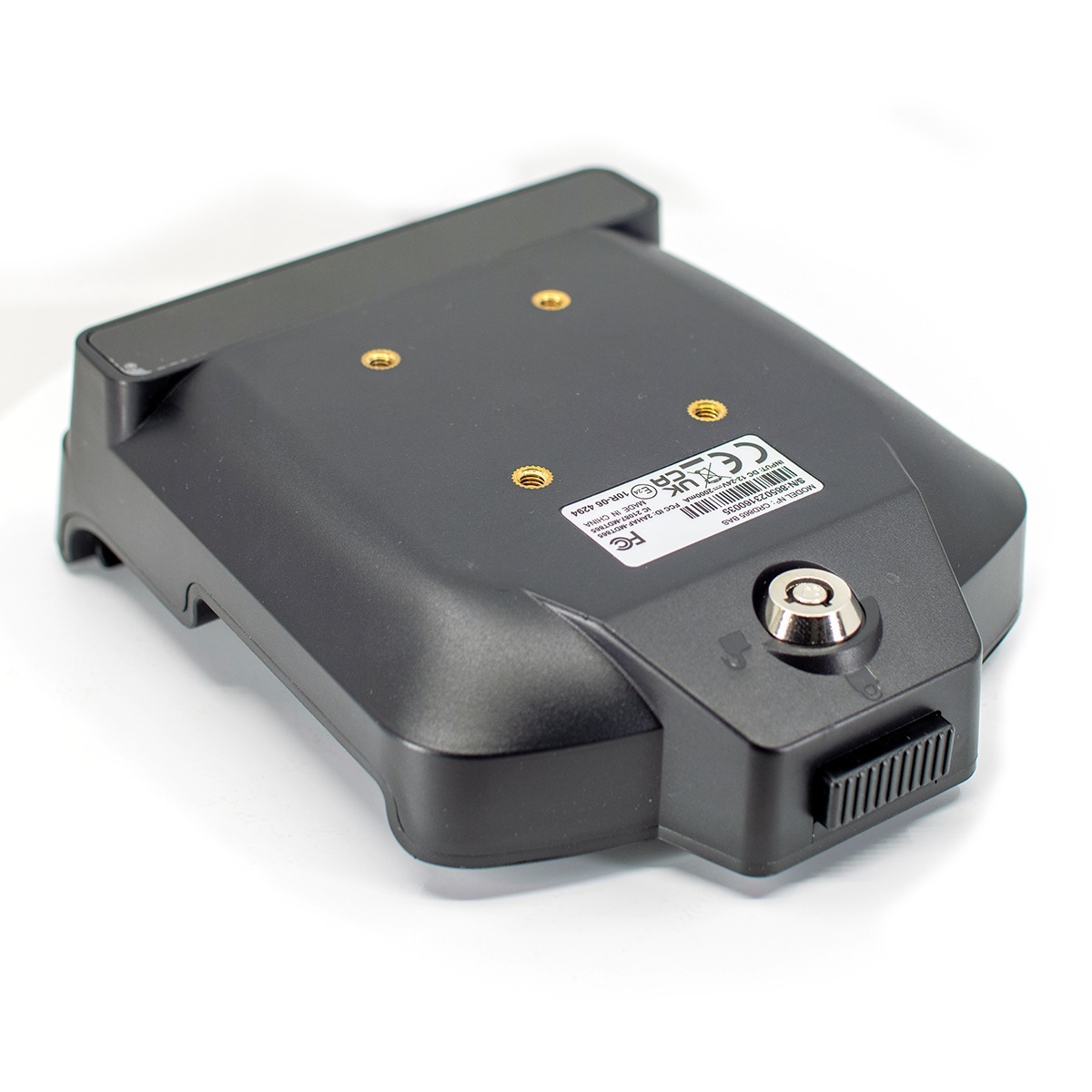

DMD-T865 Holder (included with all devices)
Connects directly to your motorcycle 12V
AMPS pattern mounting
Lock in the rear – Note: always lock before riding!

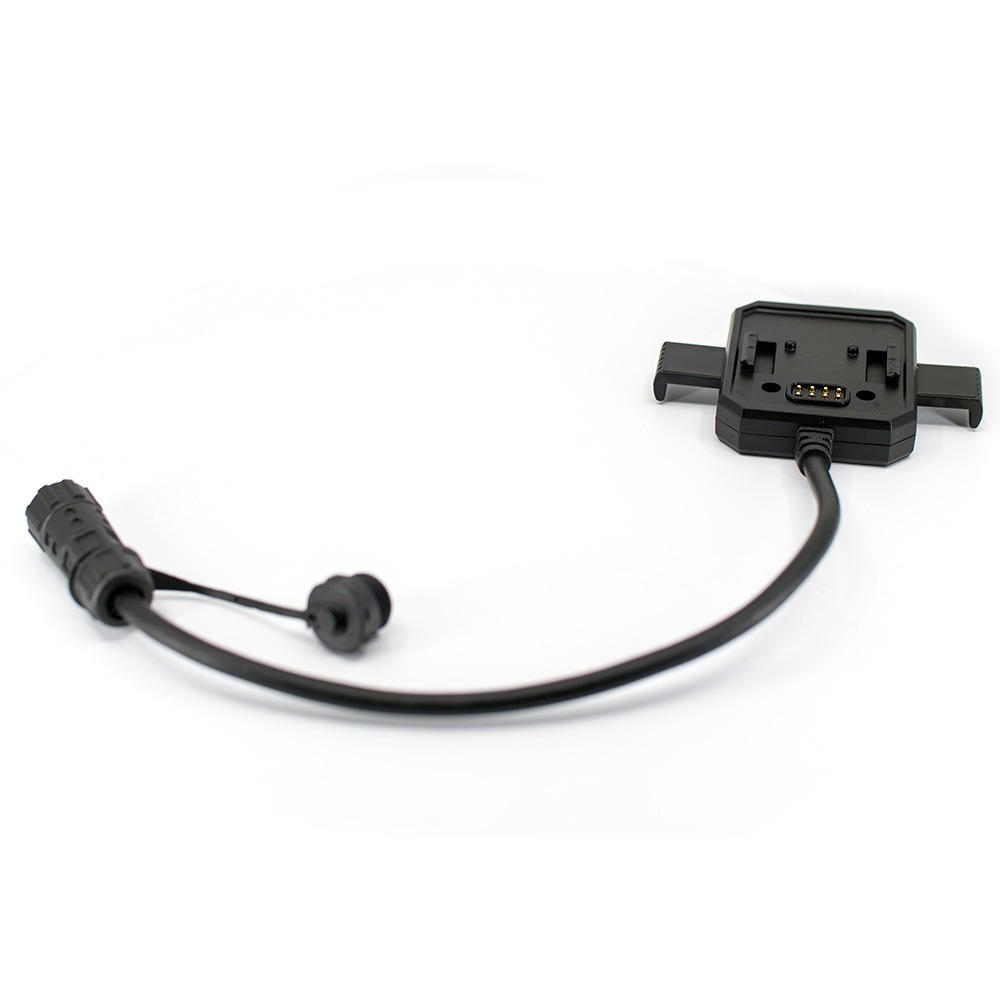

DMD-T665

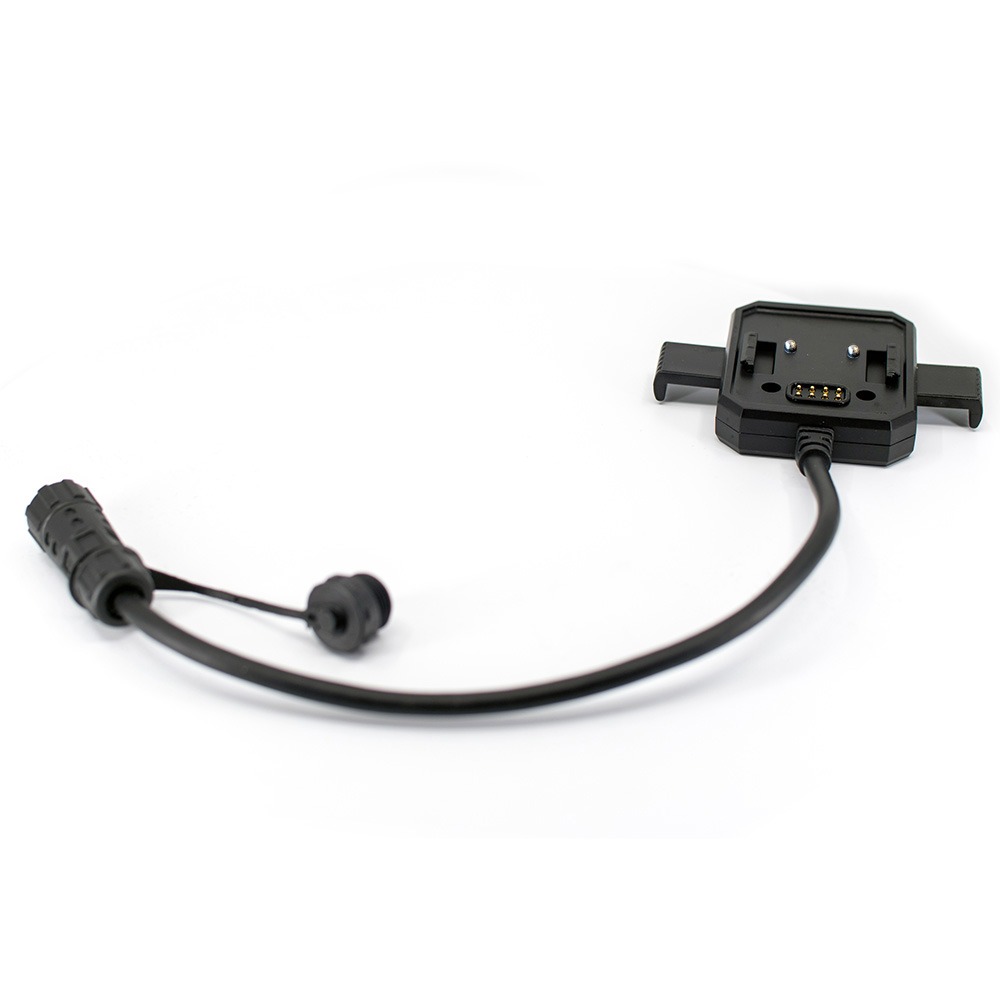

DMD-T665 Holder (included with all devices)
Connects directly to your motorcycle 12V or to USB plug
AMPS pattern mounting
Optional lock available

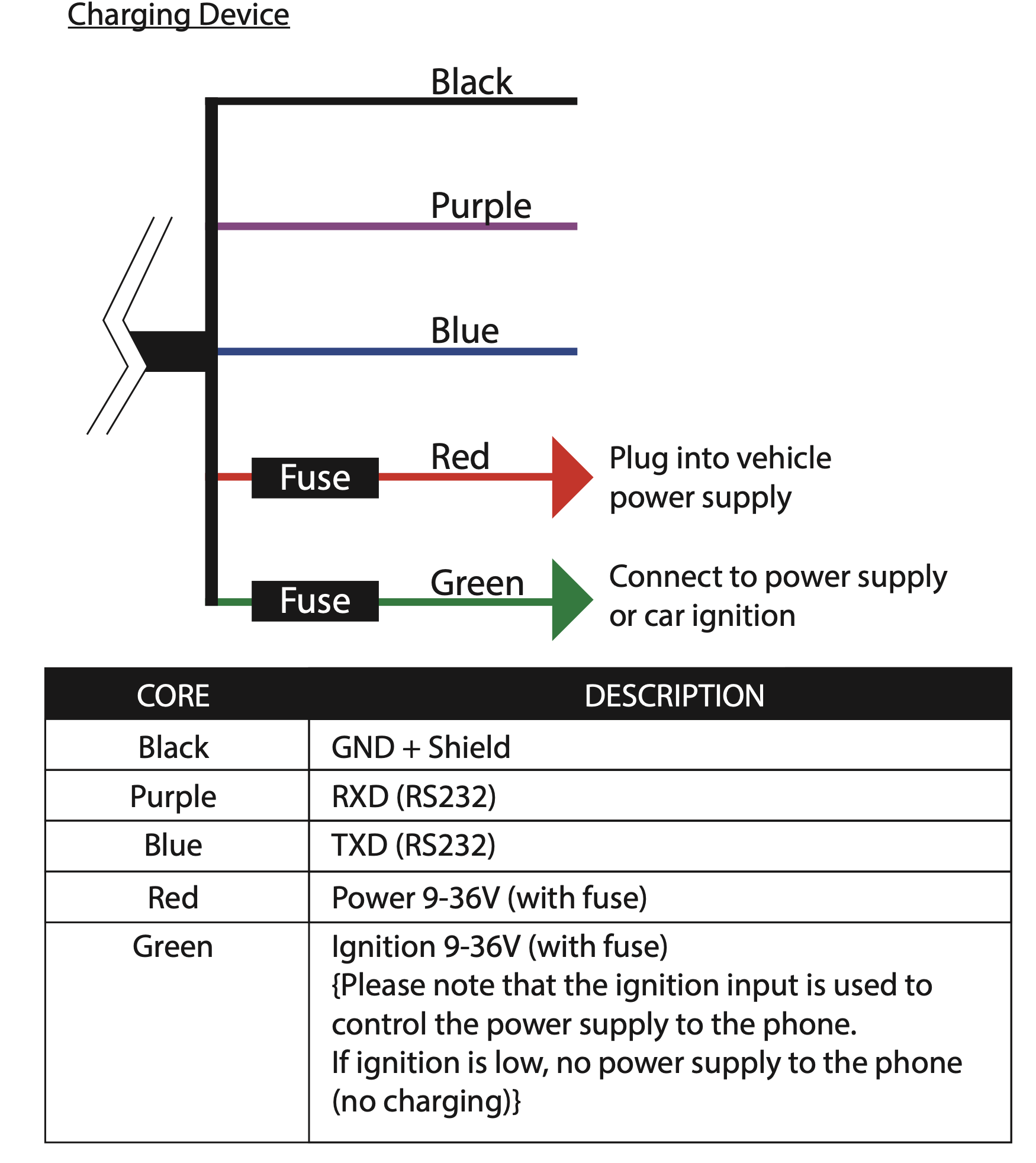

Wiring (to motorcycle 12V):

Black (one or two wires) – Connect to ground (negative), post ignition or directly to battery makes no difference. If there is two black wires group them together.
Red – Connect to battery positive directly or post ignition.
Green – This wire commands the power supply, if it gets power it will turn on the power supply. If you are connecting everything post ignition then group this with red (join both). If you are connecting the red directly to battery you can use the Green as a “switch”, so connect it to a post-ignition or to a switch and back to positive.
Purple and Blue (or White), labeled with TXD and RXD, are for data, in case in the future we release wired accessories, these two allow for data connection.

DMD-T865

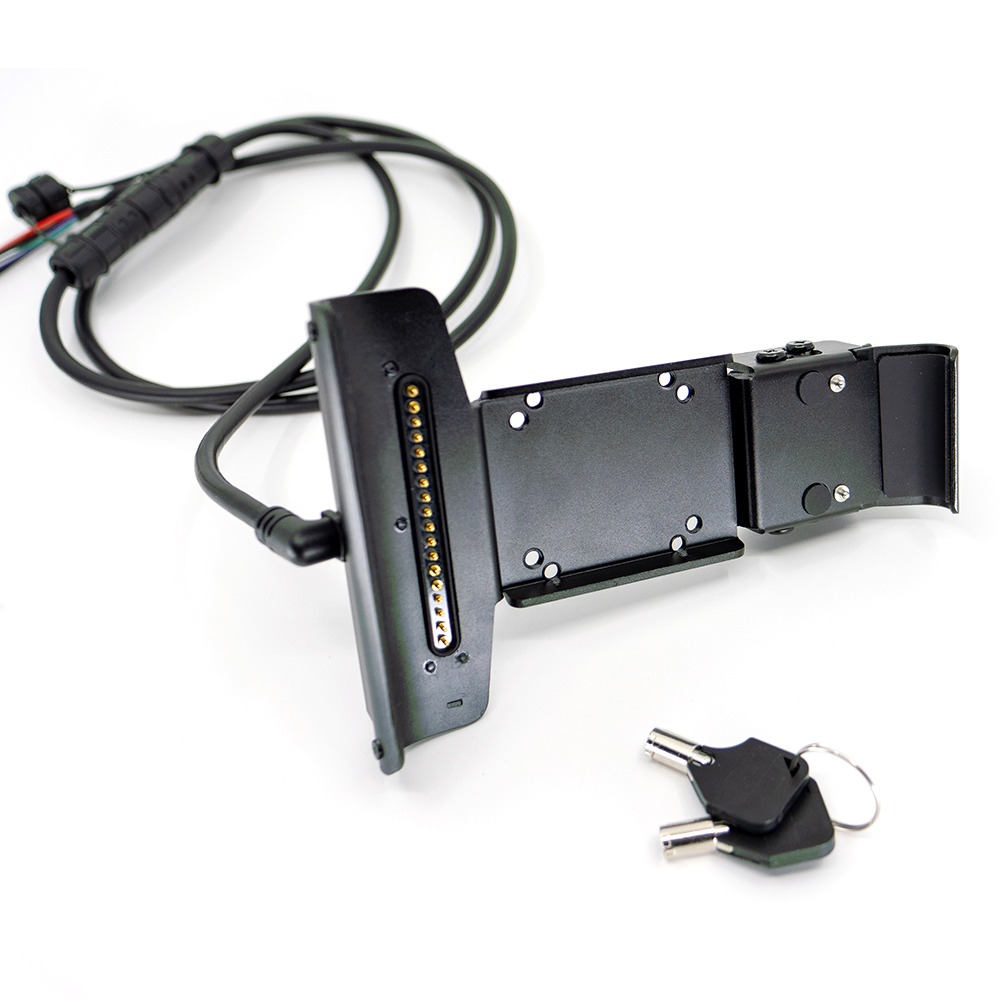

The DMD-T865 is internally 12V it does not use any external power supply, there are two holders available, where both will have an harness coming out which should be connected to motorcycle 12V, the latest holder is this one:

DMD-T665

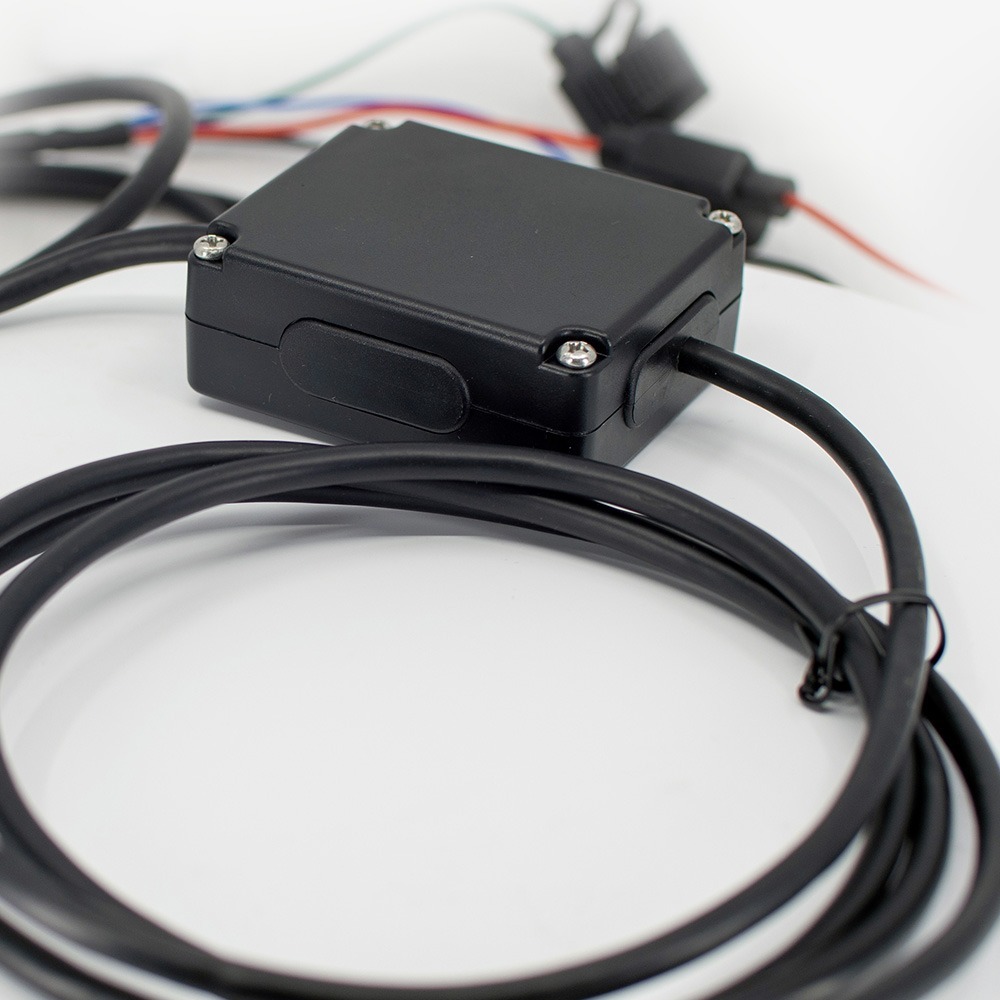

The DMD-T665 cradle can be powered by an external power supply which connects to motorcycle 12V or by USB, the recommended solution is the 12V power converter:

Firmware Updates:

To make the firmware updates as simple as possible, every time we release an update you simply get a notification to update, just tap on the notification and it will start the download.
There are two types of firmware updates, complete updates which will move the firmware version up and included latest security updates, and partial updates which only update certain system apps and device settings, both use the same notification tap method.
After taping the notification the download will start, you can track the progress in the notification. When the download finishes the tablet will restart and apply the updates.

Auto Turn On and Off:

Auto Turn On is activated by default on all DMD-T devices, this means that if your device is turned off it will turn on as soon as it starts charging.
Auto Turn Off is fully configurable, it can be enabled or not, it can do a full shutdown or just turn off screen, show a dialog with a counter or not.
To setup Auto Turn Off you can use the included “Auto Off” app.
Auto Off app:
Auto Off options:
Auto Off dialog:

Default Home Launcher:

The default home launcher is the app which is shown when your device first starts or when you press the home button.
Some users like the tablet to behave more like a traditional Android device, with a regular launcher where they can launch any app including DMD2. Other users will use the tablet mostly on their motorcycles and want DMD2 to be the default home app.
Whatever you prefer, notice that, you can always change this at any time. Check the video bellow to see how.

In the video:

  • Open default Android Settings
  • Click Apps
  • Click Default Apps
  • Click Home app
  • Click on your preferred launcher app

No Keyboard when using a controller:

If after pairing a remote controller there is no software keyboard you just need to manually enable it.
If the on-screen keyboard is missing when you click on text input boxes, chances are you paired a remote controller and the system disabled the on-screen keyboard.
This setting can be changed at anytime and the setting will be remembered by the system (you only need to do it once).

In the video:

  • Pull the top notification drawer
  • Click on the notification with “Configure physical keyboard” title
  • Enable “Use on-screen keyboard”
  • Done!

This setting can also be found in Android Settings > System > Languages & Input
